Welding Positioners

Welding Positioners

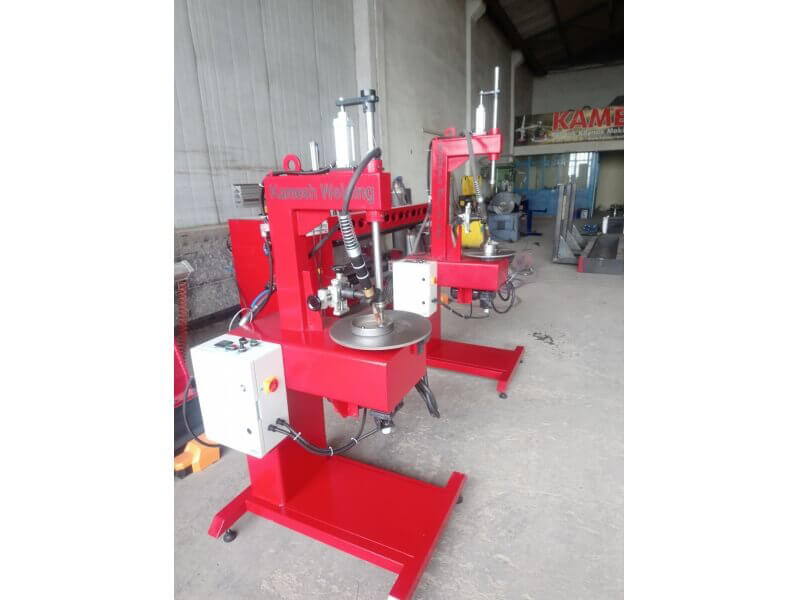

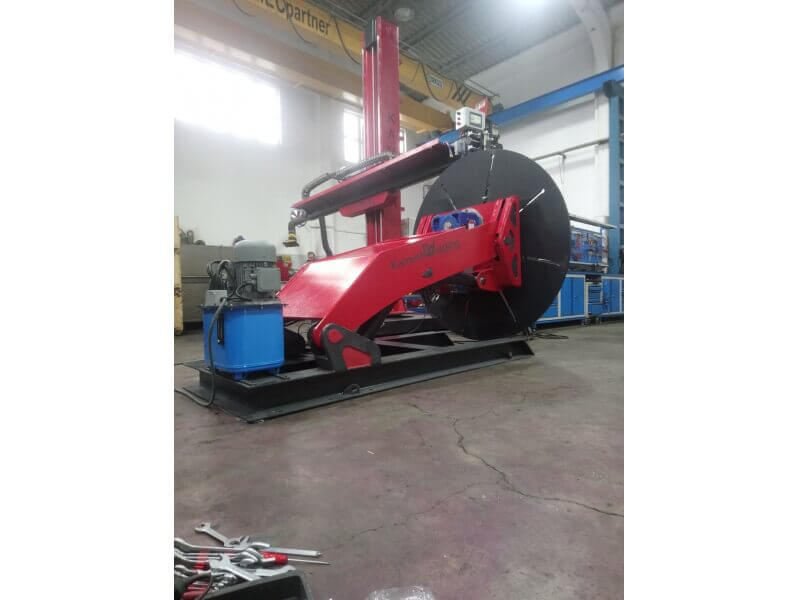

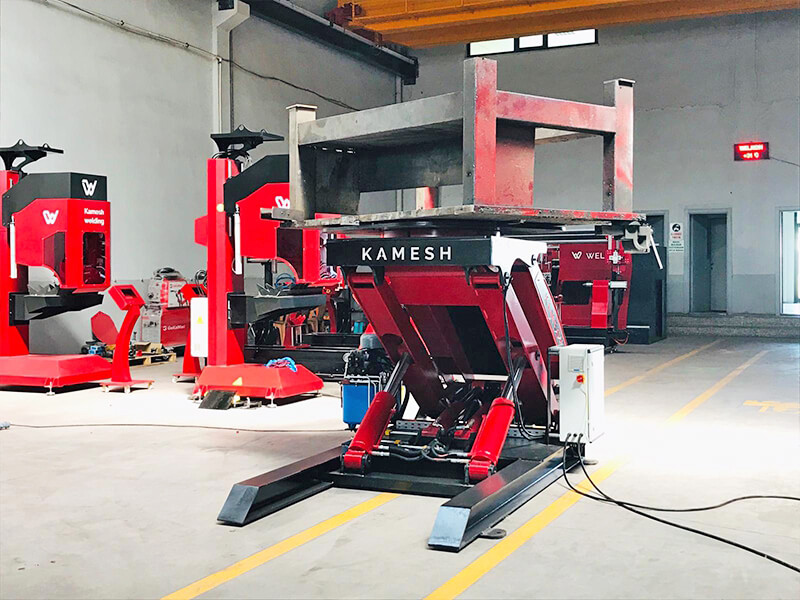

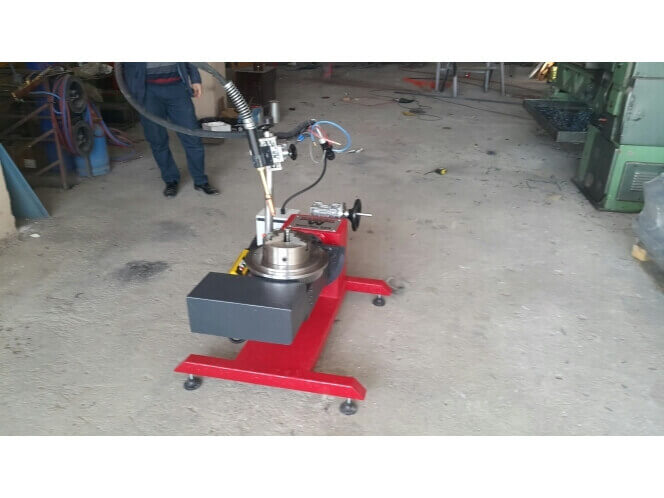

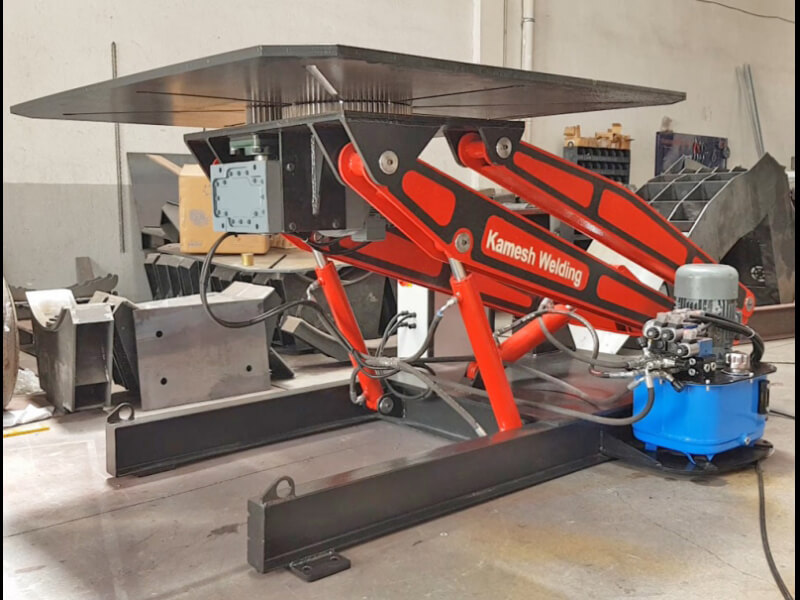

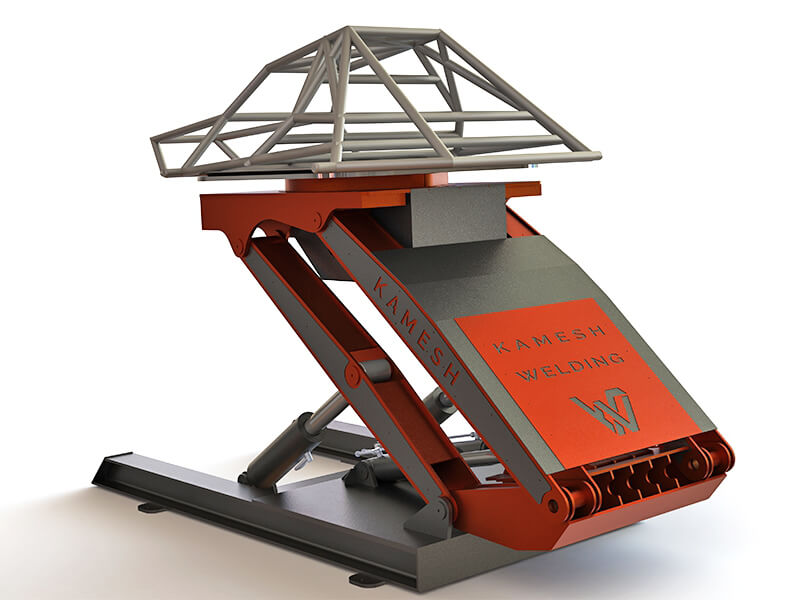

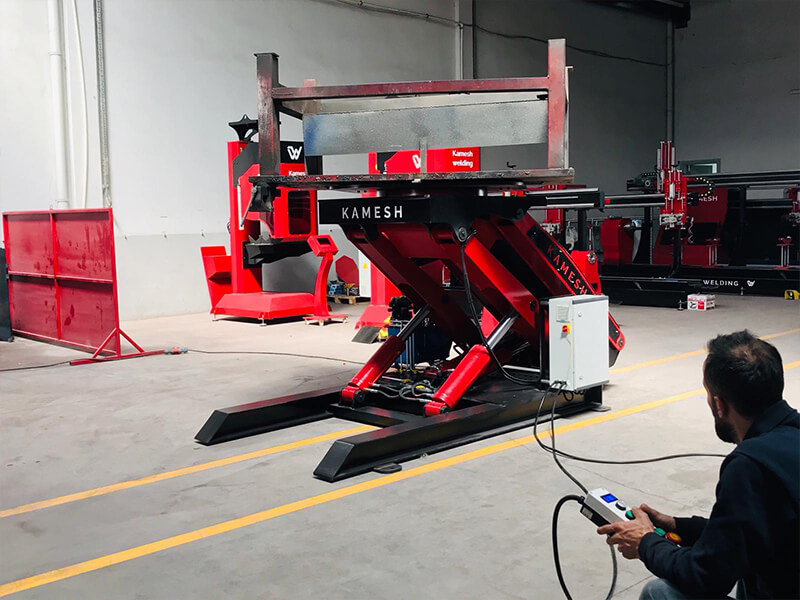

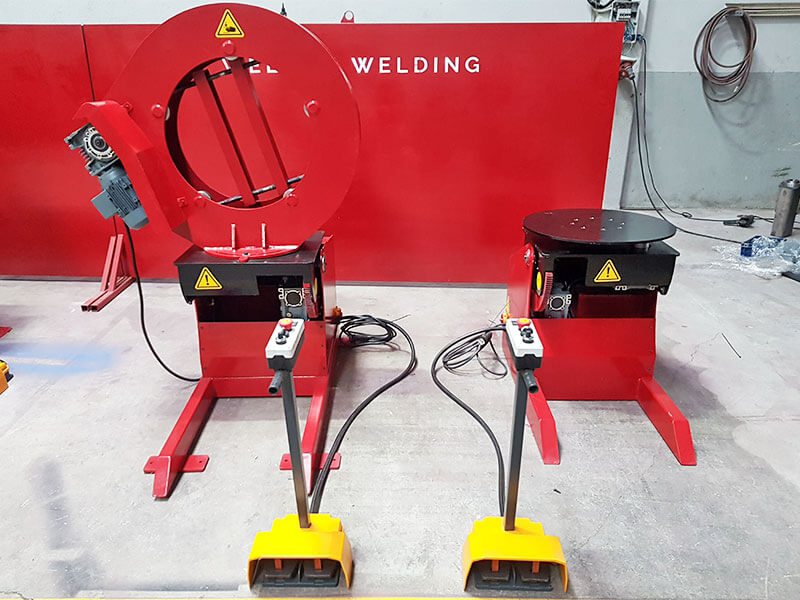

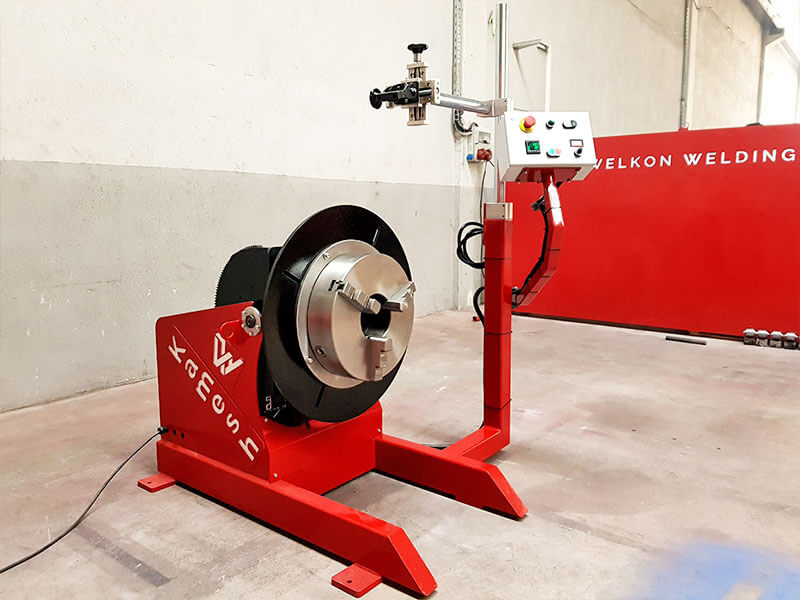

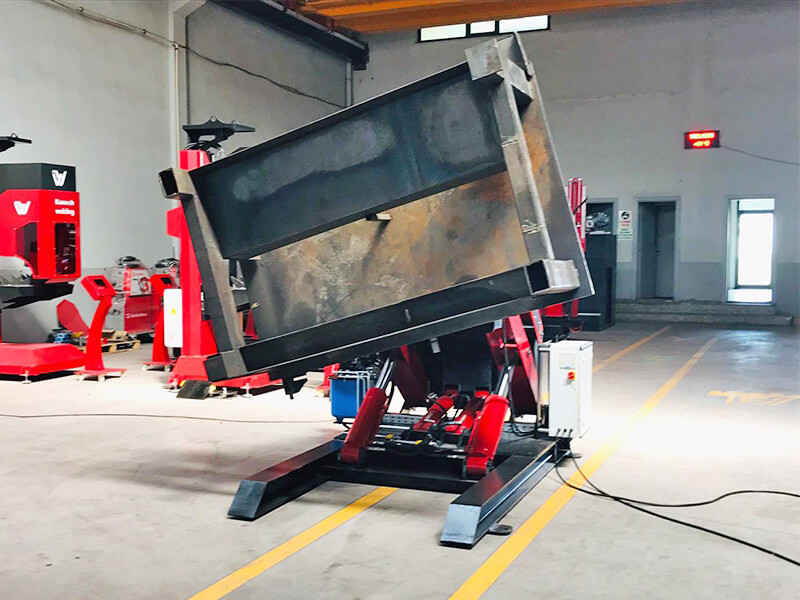

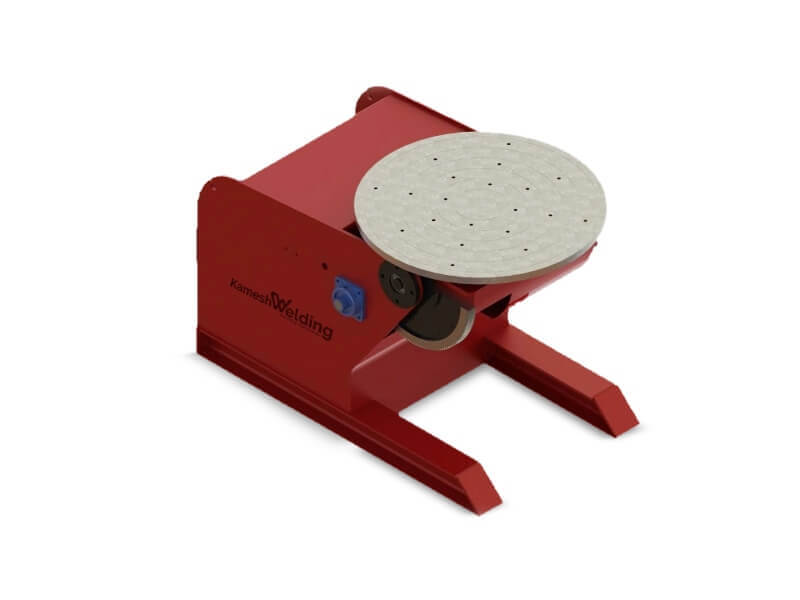

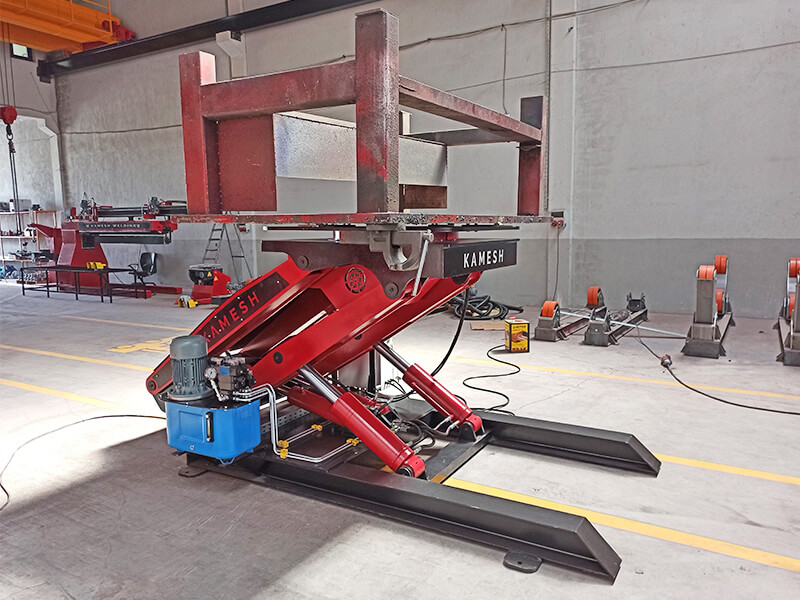

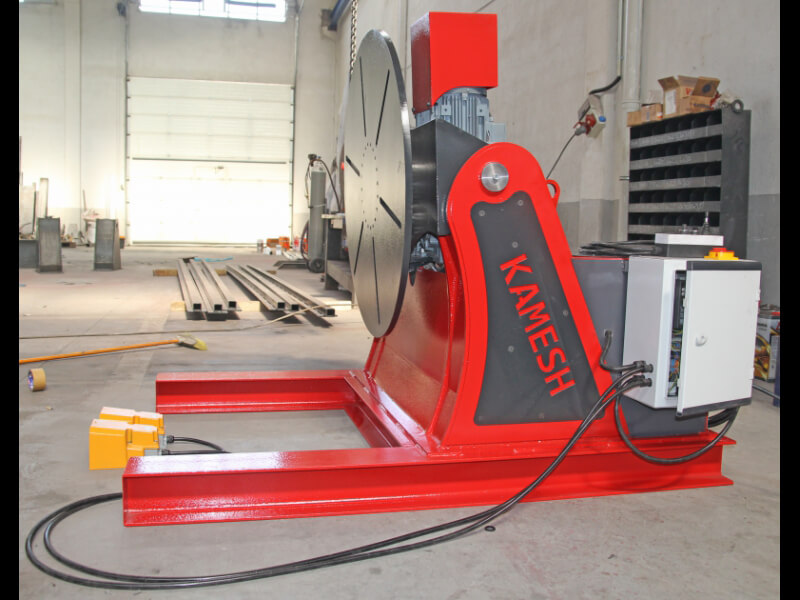

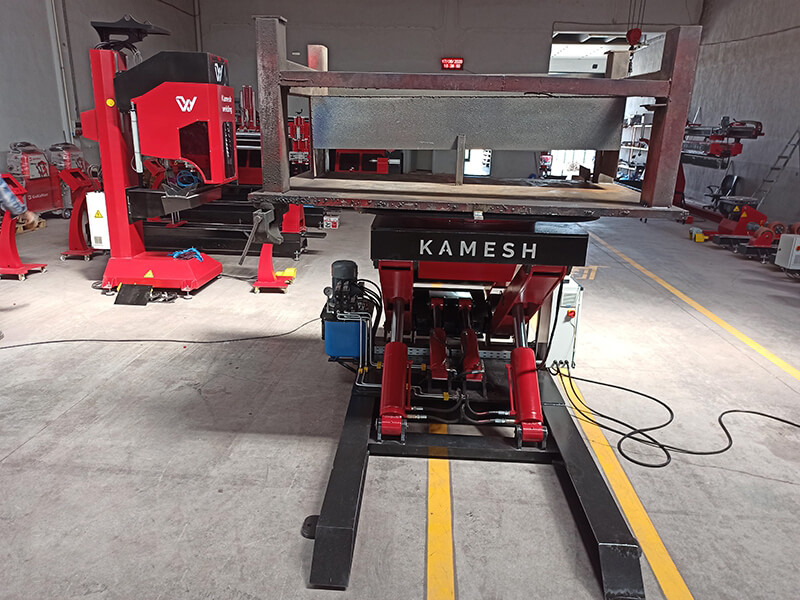

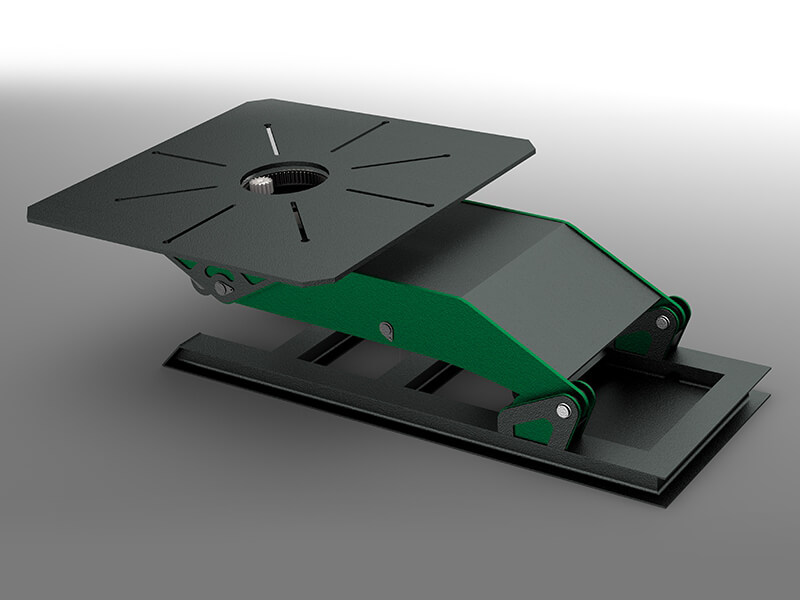

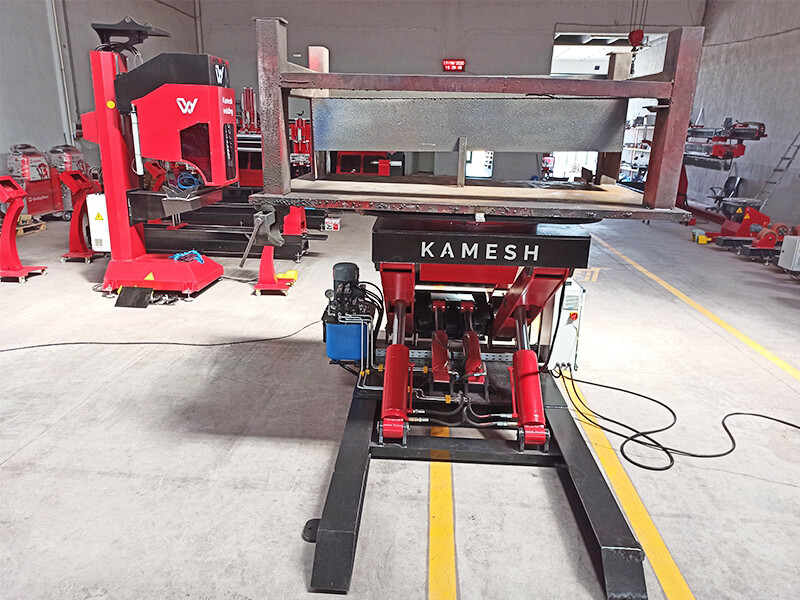

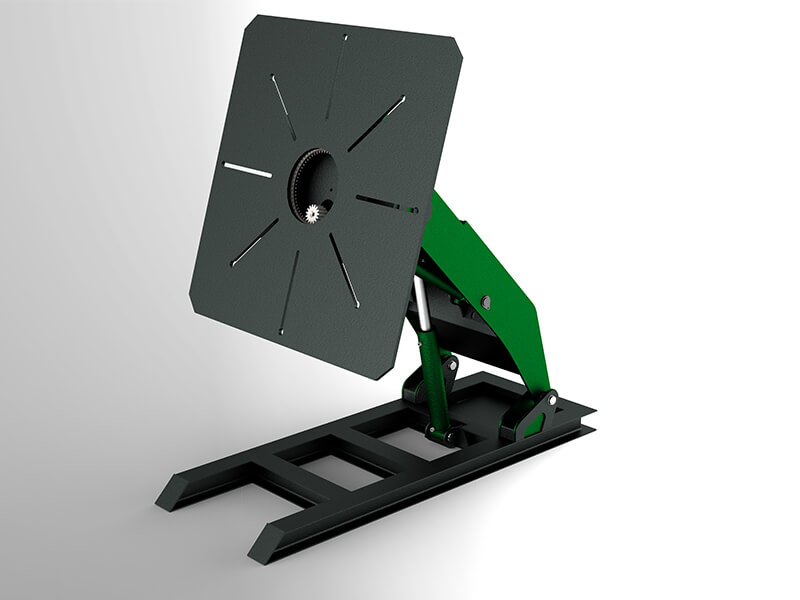

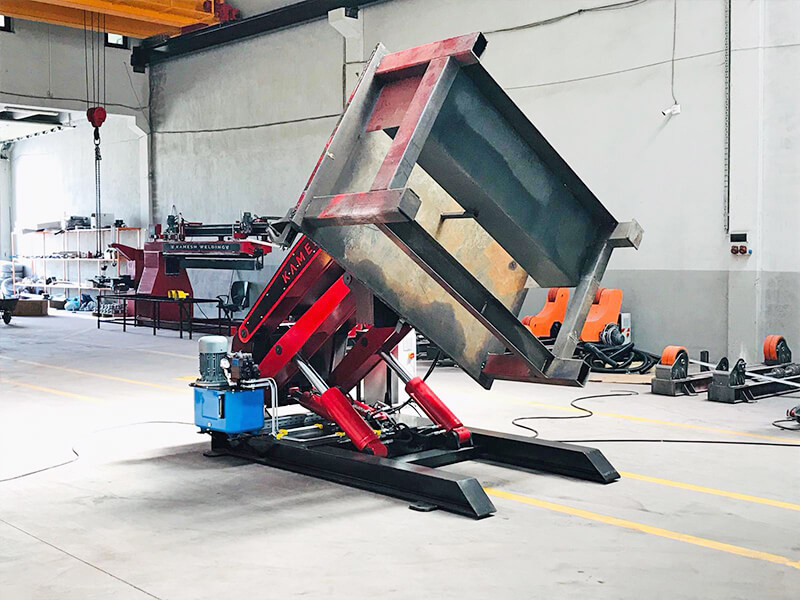

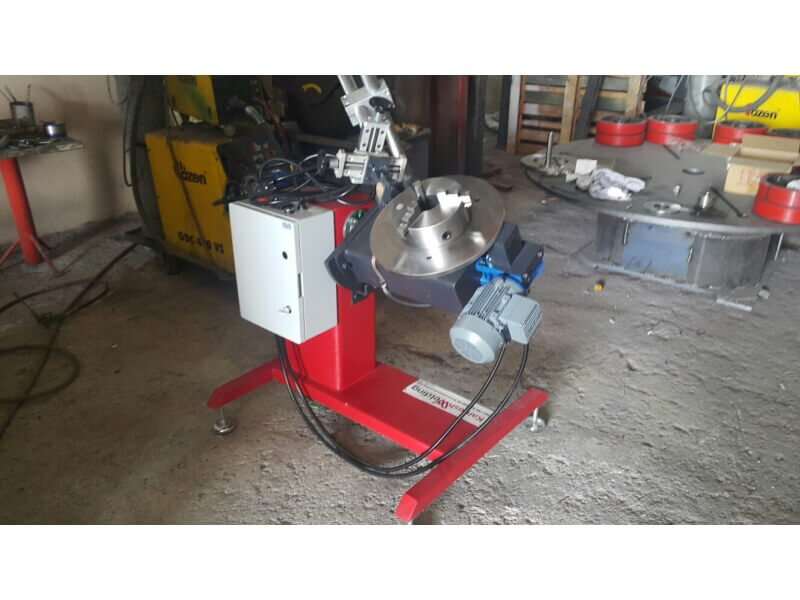

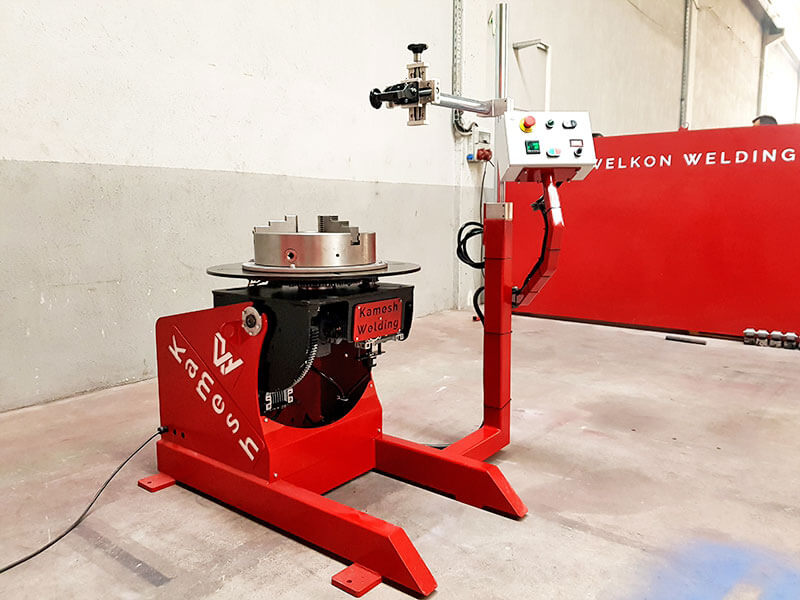

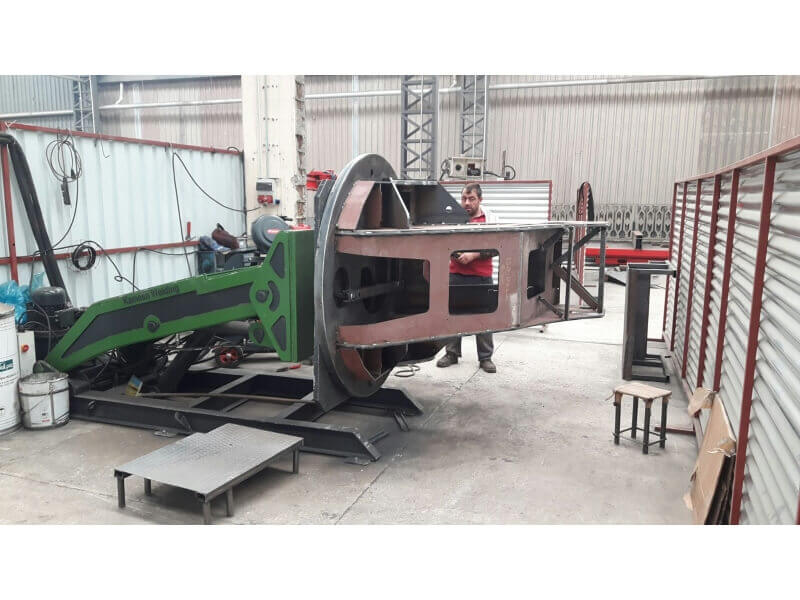

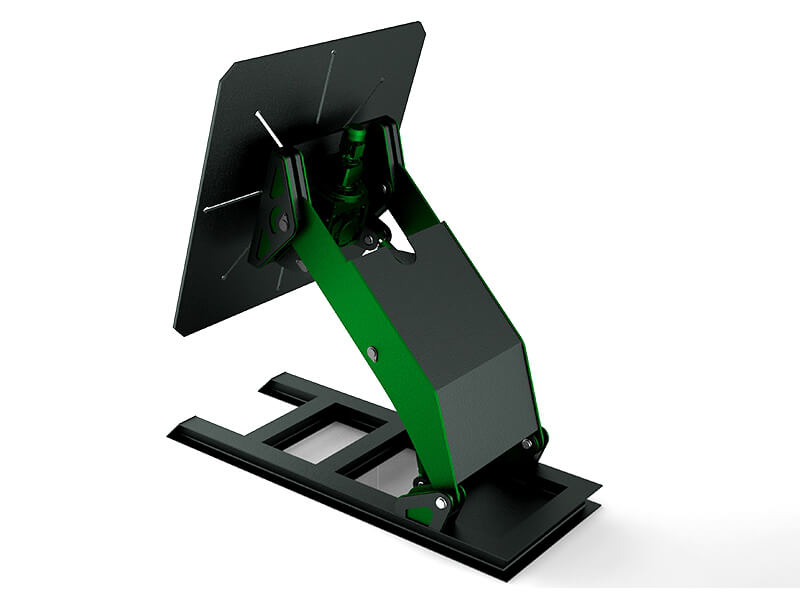

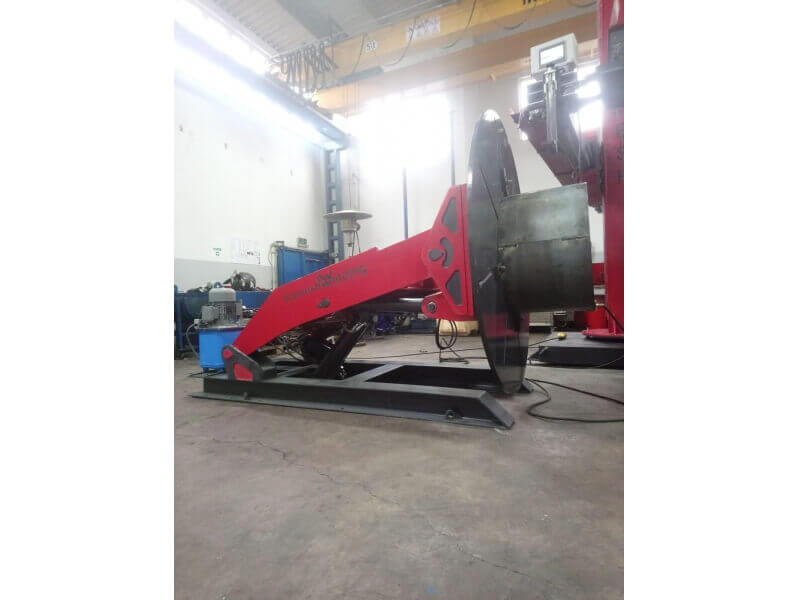

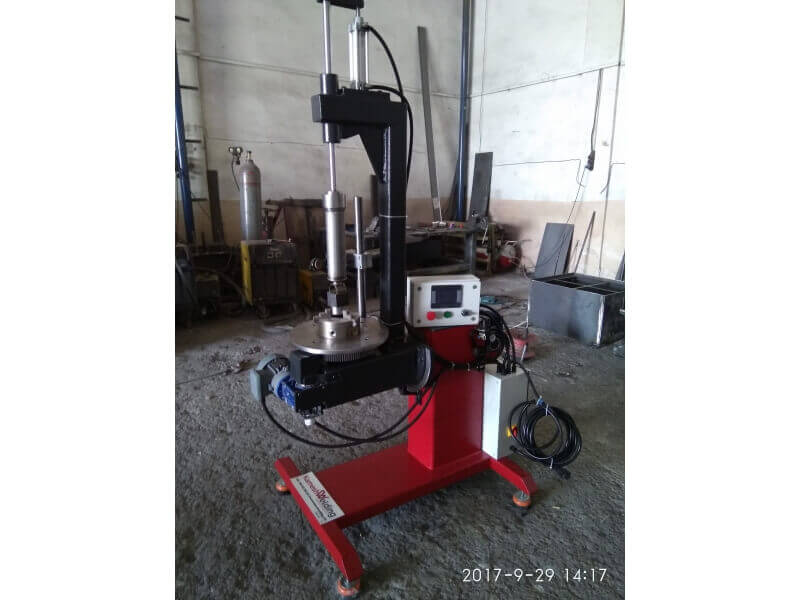

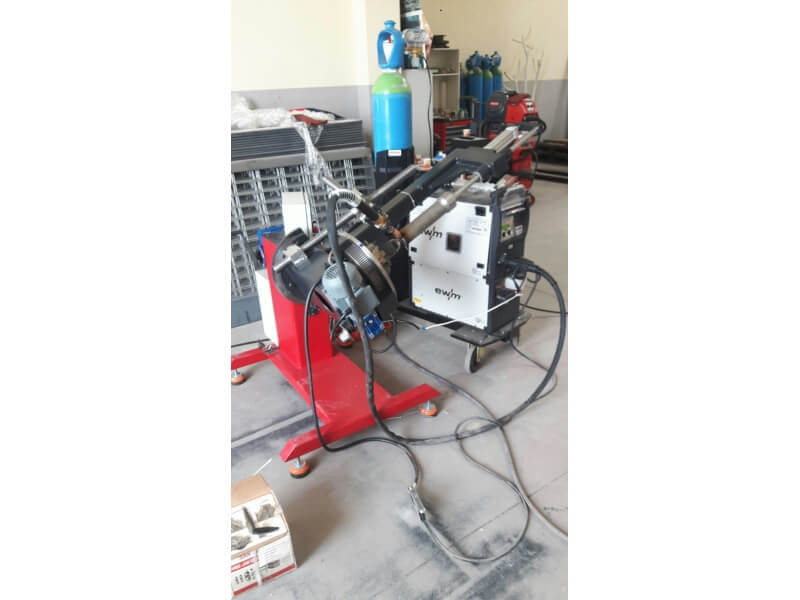

This is a product line with 50 kg and 20 tons loading capacity. The line is manufacturing in two types, geared and hydraulic. They can be utilized and benefited by all companies that employ welding involved manufacturing. Their platforms are 360 degrees rotatable with forward tilting feature. Due to this tilt feature, the parts on the platform can be welded in any angle. The control in the positioners with smaller loads such as 50-500 kg is provided by wired remote as the ones with loading capacity that exceeds 500 kg. by implementing a welding machine to the trigger cable that is present in our line of automated welding machines, it is possible to obtain synchronous operation. The machine is used for submerged, TIG and metal gas welding applications. The platform rotation is controlled with speed control system and tilting has no speed control feature. The machines can be manufactured with different type and features such as standard, L type, hydraulic . Our standard machines have two axes as our L type positioners have 3 axes. The machines can be manufactured with PLC controllers optionally. Bores and T grooves are bored onto the platforms depending on the loading weights.

Technical Specification

Technical Details  KWPOZ100 KWPOZ250 KWPOZ500 KWPOZ1000 KWPOZ3000 KWPOZ5000
Lated Load Capacity  (KG) 100 250 500 1000 3000 5000
Rated Center Of Gravity (MM) 150 150 150 150 150 150
Rated Eccentrcity (MM) 150 150 150 150 150 150
Table Rotation Degree  (º ) 360 360 360 360 360 360
Tilt  Direction  Right -Left Front  Front  Front  Front  Front
Rated Tilt Torgue  (º ) 120 120 120 120 120 120
Input Power  230 v -50 Hz  230 v -50 Hz  230 v -50 Hz  230 v -50 Hz  230 v -50 Hz  230 v -50 Hz
Rotation motor  (KW) 0,25 0,37 0,37 0,55 1,1 1,5
Tilt Motor (KW) 0,18 0,18 0,25 0,55 0,75 1,1
Table Diameter  (MM) 400 600 700 1150 1250 1350
T Slots  M10 Hole  x 12 M12 Hole x12 M12 Hole x12 M16 T Slot x 4 M16 T Slot x 4 M16 T Slot x 4
Dimension  (MM) 920x800x800 1000x650x600 1150x750x700 1850x1150x1150 2000x1250x1250 2200x1350x1350
Weight  (KG) 240 290 350 1450 1850 2500
Color Red -Grey  Red -Grey  Red -Grey  Red -Grey  Red -Grey  Red -Grey
